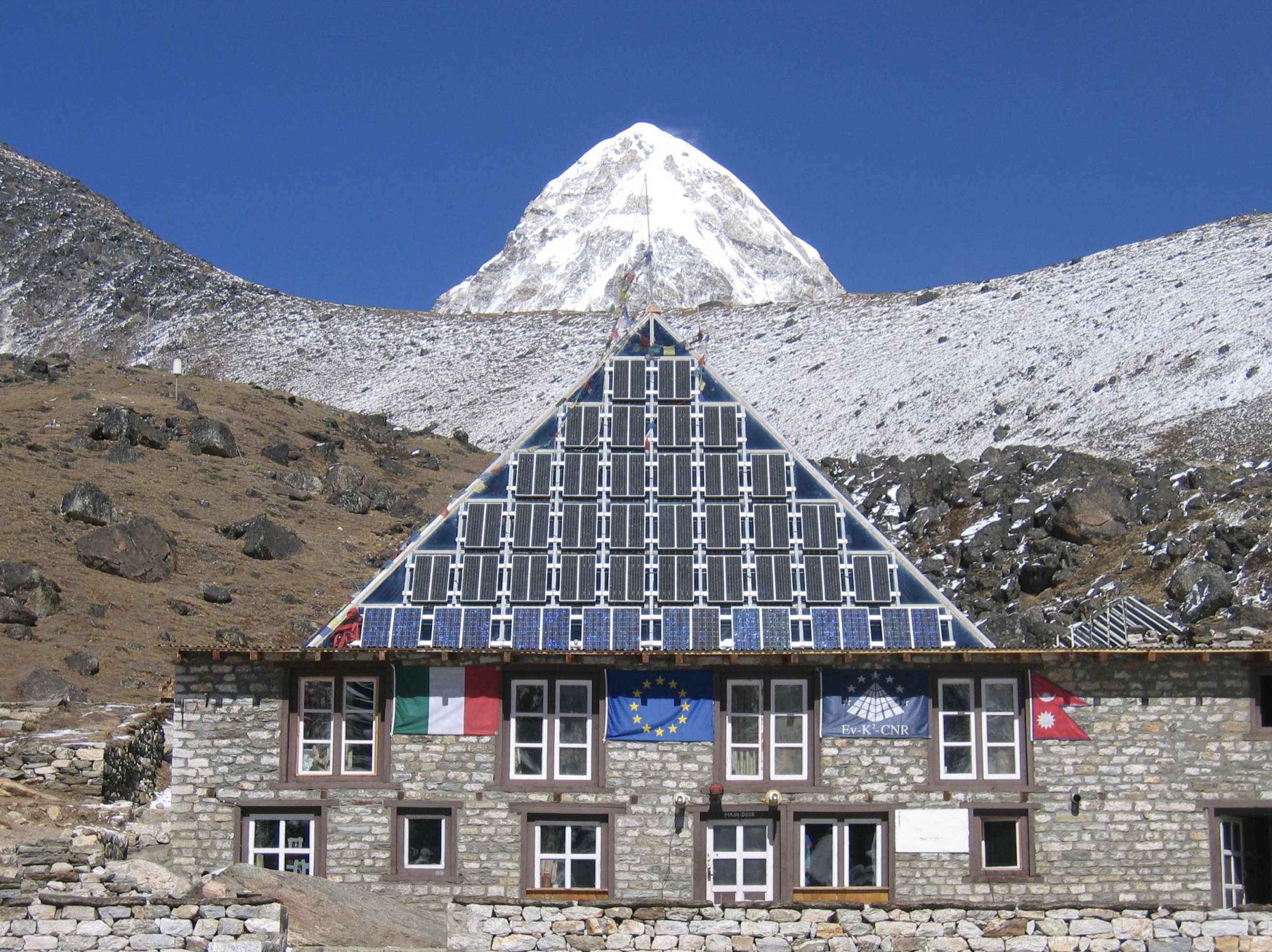

At the Pyramid Laboratory - Observatory the DPE260 Lsi-Lastem Heat flux sensor is installed. Heat flux sensors are used for measuring thermal flux, i.e. the quantity of energy that passes through the sensor itself. A thermopile, inserted within the heat flux, measures the small temperature difference that forms between its two sides due to thermal resistance. These sensors have direct outputs and are supplied with calibration certificates. The technical characteristics are: - Sensitive element: Thermopile - Measurement range: <2000 Wm-2 - Electric output: 8..14 Wm-2 - Impedance: 400..500 ohm - Accuracy: 3% - Non-linearity: <1,5% - Th.drift (-10+40°): <2% - Response time (63%): 2min 5 min - Operative temp: -40°+80°C. - Therm. Conductivity: 0,5 W/m°C - Thickness: 7 mm - Ø total: 50 mm - Ø active :15mm - Output cable: 2 mt - Weight (no cable): 50 gr

At the Pyramid Laboratory Observatory AWS the DMA570 Lsi-Lastem Thermohygrometer is mounted on a 2 m pole. It is a probe for measuring air temperature and air relative humidity with replaceable sensitive element for simplify calibration and maintenance. LSI-Lastem supplies a precise and reliable set of probes, suitable for a continuous measurement in severe environments, in presence of deep thermal and hygrometric ranges with high sun radiant heat. An important feature of this set of sensor is that the thermohygrometric sensitive element is easily replaceable, in order to have a simple and rapid ordinary maintenance and avoiding calibration. The Thermohygrometer has supported a considerable improvement, owing to a deep technical and styling development process: a fan ensures a continuos air change around the sensor in order to eliminate temperature fault caused by radiant heat. For temperature: Range -30.+70°C Sensitive element Pt100 1/3 DIN-B Accuracy ± 0,1°C (0°C) Hysteresis&Repeatability na Resolution 0,025°C Long term stability -0.04% (after 5 years at 200°C) Calibration uncertainty 0,1°C Response time (T63) Wind speed 0,3-0,5 m/s: 80sec Radiation shield efficiency with respect to forced ventilation sensor (wind 0,5m/s, rad.800 W/m2): +0,6°C For relative humidity: Range: Nom.0..100%, Eff.10..98% Sensitive element Capacitive Accuracy 2,5% (11-90%) 0,6°C (20°C, 50%RH) Hysteresis&Repeatability 0,5% Resolution 0,2% Long term stability -2%/year (at 75%RH) n.a. Calibration uncertainty 0,1°C 1,5% na Response time (T63) Wind speed 0,3-0,5 m/s: 80sec Radiation shield efficiency with respect to forced ventilation sensor (wind 0,5m/s, rad.800 W/m2): n.a. General characteristic: Ventilation: Natural Electric output Jumper locally selectable 2 x 0-20 mA, 4-20 mA, 0-5 V, 1-5 V. 60-300 mV Output signals Output n.1: temperature. Output n.2: RH% or dew point (default RH%) Operating temperature -30°+70°C Sampling rate 1 sec. (default) PC programmable 1..300 sec. N°acquisitions for mobile average calculation: N°1 (default), PC programmable 1..20 acquisitions Load resistance (mA output): DMA570 300 Ohm

At the AWS Pyramid Laboratory Observatory station the CombiSD DNA022 Lsi-Lastem combined wind speed-direction sensor is mounted on a 5m pole. The CombiSD sensor includes, in a single apparatus, the both transducers for measuring wind speed and wind direction. Its use simplifies the installation and the plant design in respect of the sensors with separate measurements plus giving some other advantages being smaller, lighter and cheaper. The CombiSD DNA022: sensor has a direct signal output. Frequency (Hz) for wind speed and resistance (Ohm) for wind direction. the CombiSD has low power consumption, it can be used in systems with small energy availability. The technical characteristics are: - Principle of operation: 3 cups and vane anemometer - Speed sensor: Optoelectronic disk - Direction sensor: 2000 Ohm wire potentiometer / Positioning Hall effect sensor - Housing: Heavy gauge anodised aluminium - Shaft carriers: Low-torque stainless steel bearings - Protection (vertical position): IP65 - Mechanical mounting: On 48 50 mm diameter mast - Electrical outlet terminators: IP65 watertight connector - Weight (instrument with rotors): 950 gr. The Physical and operational specification are: - damage threshold > 75 m/s - operating temperature: -30°+70°C The speed measures are specified by: - Measurement range: 0-60 m/s (using transfer function) - Threshold: 0,21 m/s - Response time (63% at 5 m/s): 0.8 s - Distance constant (delay distance) at 5 m/s: 4 m - Resolution (integration time=1s): 0.05 m/s - Accuracy & Linearity: 0,1 m/s+1%VL (readout), if connected to LASTEM data loggers. The direction measures are specified by: - Measurement range: 0 ÷ 360 - Threshold: 0,15 m/s - Response time (at 5 m/s): 0,26 s - Delay distance (at 5 m/s): 1,32 m - Damping coefficient (VDI3786): 0,21 - Transfer function: Dir(°)= 355 x R(Ohm)/2000 - Resolution: 0,1 - Accuracy: 1% FS (Full scale) - Integral linearity: 0,5%

At the Pyramid station the the CM6B pyranometer, manufactured by Kipp & Zonen is installed. This sensor is a first class pyranometer as defined by the World Meteorological Organization. It is suitable for the measurement of solar irradiance on a plane surface (W/m2). It incorporates a 64-thermocouple sensor, which is rotationally symmetrical, housed under K5 domes. A white screen prevents the body of the pyranometer from heating up. The pyranometer is supplied with a spirit level and screws for accurate levelling. CM6B technical data - Spectral range 305 to 2800 nm (50%points) - Sensitivity 9 to 15 ?V/Wm-2 - Impedance 70 to 100 Ohm - Response time 1/e 5 s, 99 % 55 s - Non-linearity <1.5 % (<1000 W/m 2 ) - Tilt error <1.5 % at 1000 W/m 2 - Operating temperature -40 to +90 °C - Temperature dependence of sensitivity _2 % (-10 to +40 °C) - Maximum irradiance 2000 W/m2 - Directional error < _20 W/m2 at 1000 W/m2 - Weight 0.85 kg - Cable length 10 m

At the AWS Pyramid Laboratory Observatory station the DQA035 Lsi-Lastem rain gauge is mounted on a 1,5 m mast. This model of Rain gauge has a 1.000 cmq collector area. The measurement device is composed of a collector cone and a double chamber bascule connected to a magnete that operates one (optional two) reed switch, which generates impulses that can be counted by external meters: each impulse is equal to 0.2 mm of rain (optional from 0.1 to 0.5 mm). The mechanical and electrical specifications are: - Collector surface area: 1000 cmq - Collector area diameter: 420 mm - Measurements range: 180 mm/hr - Resolution: o,2 mm/imp. (opt. 0,1; 0,3; 0,4; 0,5; mm/imp.) - Accuracy: 0-1 mm/min: 1% 1-3 mm/min: 2% 3-5 mm/min: 4% 5-10 mm/min: 8% - Contact: 1 reed (opt. N.2 reed) 0,5 A/24V non inductive - Pulse duration: 100 msec.± 5 - Collector cone material: Brass - External housing material: Inox AISI30 - Tipping bucket material: Alluminium - Cable: 10 m - Weight: 6,3 kg - Power supply: /thermocover 100 W, 24 Vca/Va
