RG13H Rain Gauge

This instrument uses a tipping-bucket mechanism to produce a contact closure every time it receives a predetermined small quantity of rainfall (0.2 mm). The body and funnel of the gauge are of aluminium alloy. An accurately machined septum-ring at the top gives an aperture of exactly 400 cm 2 . The tipping-bucket mechanism is mounted inside the body on a cast aluminium-alloy base equipped with fixing slots, three levelling screws and a spirit level. The mechanism consists of a divided bucket pivoted at its centre. Rain collects in the upper half. When this is full, the mechanism tilts and discharges the collected water, allowing the other half of the bucket to begin filling. A siphon device is fitted to the base of the funnel to control the rate of flow into the buckets. By ensuring a constant flow rate into the tipping bucket, calibration is made easier and accuracy improved. The alternate filling and discharging continue as long as rain is falling, and at each tilt, magnet momentarily closes the contacts of a reed switch. In the rain gauge of type RG13H, a heater element is provided inside the body in order to melt snow. The heater switches on at temperatures below +4 °C.

Technical Specifications

Diameter of aperture: 225 mm

Area of aperture: 400 cm2

Rainfall capacity unlimited

Sensitivity (rainfall per pulse) : 0.2 mm

Dimensions (height diameter): 390 300 mm

Weight: 2.5 kg

Heater (in RG13H) : 38 W/40 VAC

Thermostat operation: Open at +11 ºC (±3 ºC)

Close at +4 ºC (±3 ºC)

Citation proposal
(2014) . RG13H Rain Gauge. https://geoportal.mountaingenius.org/geonetwork/srv/api/records/b715af00-1bf6-44f6-8990-e4e4cddbbe63

Simple

Date ( Publication ): 2014-08-29T19:08:00

Edition

Purpose: Vaisala RG13H Rain Gauge permits to measur total precipitation.

Status: On going

Point of contact

Ev-K2-CNR - ( )

Via San Bernardino 145 Bergamo BG 24126 Italy

+39 035 3230511

+39 035 3230551

Website: http://www.evk2cnr.org/

Maintenance and update frequency: As needed

Keywords ( Theme )

NEXTDATA

Keywords ( Theme )

NEXTDATA

Keywords ( Theme )

SHARE , , monitoring network

Keywords ( Place )

Rwenzori Range , Elena Glacier , Rwenzori Mountain National Park

GEMET themes ( Theme )

air , climate , total precipitation , pollution , research

Keywords ( Theme )

NEXTDATA

Keywords ( Theme )

SHARE , , monitoring network

Keywords ( Place )

Rwenzori Range , Elena Glacier , Rwenzori Mountain National Park

GEMET themes ( Theme )

air , climate , total precipitation , pollution , research

Keywords ( Theme )

NEXTDATA

Keywords ( Theme )

SHARE , , monitoring network

Keywords ( Place )

Rwenzori Range , Elena Glacier , Rwenzori Mountain National Park

GEMET themes ( Theme )

air , climate , total precipitation , pollution , research

Keywords ( Theme )

NEXTDATA

Keywords ( Theme )

SHARE , , monitoring network

Keywords ( Place )

Rwenzori Range , Elena Glacier , Rwenzori Mountain National Park

GEMET themes ( Theme )

air , climate , total precipitation , pollution , research

Use limitation: Data Sharing and Publication Policy at DISTRIBUTION SECTION

Access constraints: Intellectual property rights

Other constraints

Spatial representation type: Vector

Character set: UTF8

Topic category

Climatology, meteorology, atmosphere
Geoscientific information
Environment

Reference system identifier: EPSG / WGS 84 (EPSG:4326) / 7.4

Topology level: Geometry only

Geometric object type: Point

Geometric object count: 13

OnLine resource: SHARE Geonetwork
SHARE Geonetwork

OnLine resource: gn:share_station
Show geographic position

OnLine resource: View in Google Earth
View in Google Earth

OnLine resource: SHARE_DSPP_10042014.pdf
SHARE Data Sharing and Publication Policy

OnLine resource: Data_Request_Form.pdf
SHARE Meteorological Data Request Form

Hierarchy level: Series

Statement

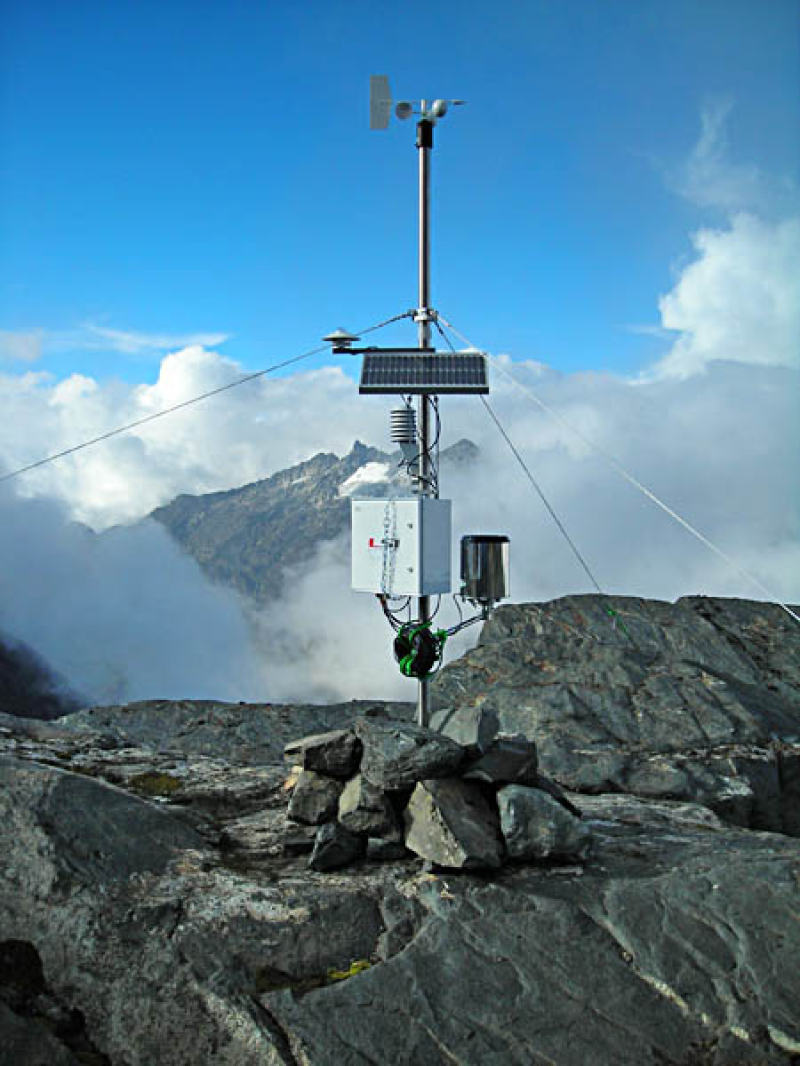

The automatic weather stations (AWS) for monitor meteorological conditions are currently included in the SHARE network.

An automatic weather station (AWS) is defined as a “meteorological station at which observations are made and transmitted automatically” (WMO, 1992a).

In particular, in the framework of the SHARE project for all parameters, the data has been visually checked, looking for extremely and unusual low/high values and/or periods with constant values.
