Urdukas CNR1 net radiometer

The CNR1 is manufactured by Kipp & Zonen for applications requiring research-grade performance. The radiometer measures the energy balance between incoming short-wave and long-wave infrared radiation versus surface-refl ected short-wave and outgoing long-wave infrared radiation.

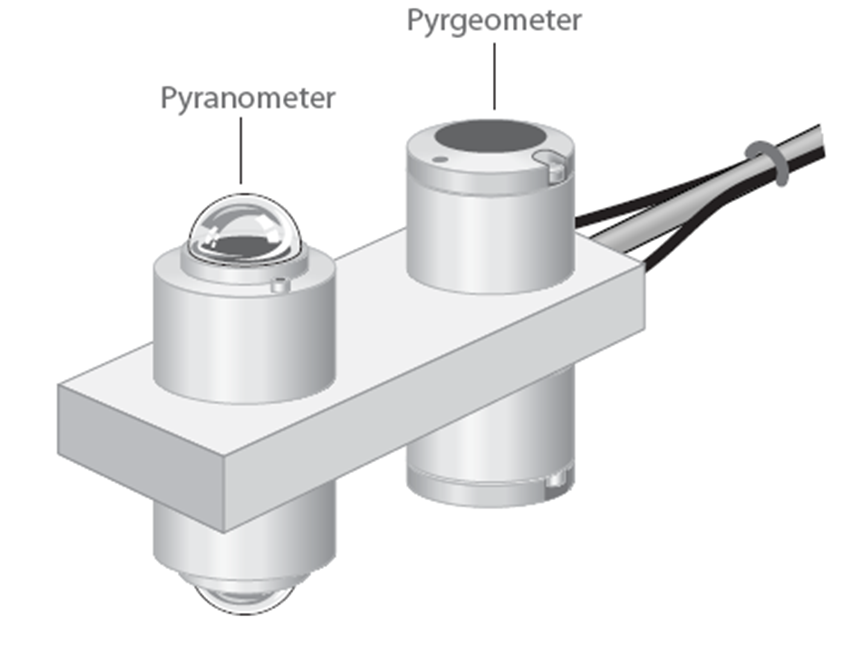

The CNR1 consists of a pyranometer and pyrgeometer pair that faces upward and a complementary pair that faces downward. The pyranometers and pyrgeometers measure short-wave and far infrared radiation, respectively.

All four sensors are calibrated to an identical sensitivity coeffi cient. Th e CNR1 also includes an

RTD to measure the radiometer’s internal temperature,a 4WPB100 module to interface the RTD with the datalogger, and a heater that can be used to prevent condensation.

Technical Characteristics:

Sensors: Kipp & Zonen’s CM3 ISO-class,

thermopile pyranometer, CG3

pyrgeometer, PT100 RTD

Spectral response

Pyranometer: 305 to 2800 nm

Pyrgeometer: 5000 to 50,000 nm

Response Time: 18 seconds

Typical Sensitivity Range: 7 to 15 μV W-1 m2

Output Range

Pyranometer: 0 to 25 mV

Pyrgeometer: ±5 mV

Expected Accuracy

for Daily Totals: ±10%

Directional Error: <25 W m-2 (pyranometer)

Heating Resistor: 24 Ohms, 6 W at 12 Vdc

Operating Temperature: -40° to 70°C

Dimensions

Mounting Arm Diameter: 0.625 in. (1.6 cm)

Mounting Arm Length: 14.5 in. (37 cm)

Radiometer: 9.1 x 3.1 x 6.1 in.

(23.2 x 8.0 x 15.6 cm)

Weight: 8.8 lbs (4 kg)

Datalogger Requirements: Six diff erential or four singleended

and two diff erential

analog channels

CE Compliance: CE compliant under the European

Union’s EMC directive
