PTB330 Digital Barometer

Vaisala BAROCAP® Digital Barometer PTB330 is a new generation barometer, designed for a wide range of high-end atmospheric pressure measurement.

• Vaisala BAROCAP® sensor

• Accurate measurement

• Excellent long-term stability

• Added reliability through redundancy

• Graphical trend display with 1-year history data

• Altitude corrected pressure (QFE, QNH)

• For professional use in meteorology, aviation, laboratories, and demanding industrial applications

Technical Characteristics:

Barometric pressure range 500 ... 1100 hPa

Class A Class B

Linearity* ±0.05 hPa ±0.10 hPa

Hysteresis* ±0.03 hPa ±0.03 hPa

Repeatability* ±0.03 hPa ±0.03 hPa

Calibration uncertainty** ±0.07 hPa ±0.15 hPa

Accuracy at +20 °C (+68 °F) *** ±0.10 hPa ±0.20 hPa

Barometric pressure range 50 ... 1100 hPa

Class B

Linearity* ±0.20 hPa

Hysteresis* ±0.08 hPa

Repeatability* ±0.08 hPa

Calibration uncertainty** ±0.15 hPa

Accuracy at +20 °C *** ±0.20 hPa

Temperature dependence****

500 ... 1100 hPa ±0.1 hPa

50 ... 1100 hPa ±0.3 hPa

Total accuracy -40 ... +60 °C (-40 ... +140 °F)

Class A Class B

500 ... 1100 hPa ±0.15 hPa ±0.25 hPa

50 ... 1100 hPa ±0.45 hPa

Long-term stability

500 ... 1100 hPa ±0.1 hPa/year

50 ... 1100 hPa ±0.1 hPa/year

* Defined as ±2 standard deviation limits of endpoint non-linearity, hysteresis or repeatability error.

** Defined as ±2 standard deviation limits of inaccuracy of the working standard including traceability to NIST.

*** Defined as the root sum of the squares (RSS) of endpoint non-linearity, hysteresis error, repeatability error and calibration uncertainty at room temperature.

**** Defined as ±2 standard deviation limits of temperature dependence over the operating temperature range.

Citation proposal
(2014) . PTB330 Digital Barometer. https://geoportal.mountaingenius.org/geonetwork/srv/api/records/0a45bed6-ee31-43bc-bb76-5ccf42c3870d

Simple

Date ( Publication ): 2014-08-29T19:08:00

Edition

Purpose: PTB330 Digital Barometer manufactered by Vaisala is used to measure athmospheric pressure.

Status: On going

Point of contact

Ev-K2-CNR - ( )

Via San Bernardino 145 Bergamo BG 24126 Italy

+39 035 3230511

+39 035 3230551

Website: http://www.evk2cnr.org/

Maintenance and update frequency: As needed

Keywords ( Theme )

NEXTDATA

Keywords ( Theme )

NEXTDATA

Keywords ( Theme )

SHARE , , monitoring network

Keywords ( Place )

Rwenzori Range , Elena Glacier , Rwenzori Mountain National Park

GEMET themes ( Theme )

air , climate , atmospheric pressure , pollution , research

Keywords ( Theme )

NEXTDATA

Keywords ( Theme )

SHARE , , monitoring network

Keywords ( Place )

Rwenzori Range , Elena Glacier , Rwenzori Mountain National Park

GEMET themes ( Theme )

air , climate , atmospheric pressure , pollution , research

Keywords ( Theme )

NEXTDATA

Keywords ( Theme )

SHARE , , monitoring network

Keywords ( Place )

Rwenzori Range , Elena Glacier , Rwenzori Mountain National Park

GEMET themes ( Theme )

air , climate , atmospheric pressure , pollution , research

Keywords ( Theme )

NEXTDATA

Keywords ( Theme )

SHARE , , monitoring network

Keywords ( Place )

Rwenzori Range , Elena Glacier , Rwenzori Mountain National Park

GEMET themes ( Theme )

air , climate , atmospheric pressure , pollution , research

Use limitation: Data Sharing and Publication Policy at DISTRIBUTION SECTION

Access constraints: Intellectual property rights

Other constraints

Spatial representation type: Vector

Character set: UTF8

Topic category

Climatology, meteorology, atmosphere
Geoscientific information
Environment

Reference system identifier: EPSG / WGS 84 (EPSG:4326) / 7.4

Topology level: Geometry only

Geometric object type: Point

Geometric object count: 13

OnLine resource: SHARE Geonetwork
SHARE Geonetwork

OnLine resource: gn:share_station
Show geographic position

OnLine resource: View in Google Earth
View in Google Earth

OnLine resource: SHARE_DSPP_10042014.pdf
SHARE Data Sharing and Publication Policy

OnLine resource: Data_Request_Form.pdf
SHARE Meteorological Data Request Form

Hierarchy level: Series

Statement

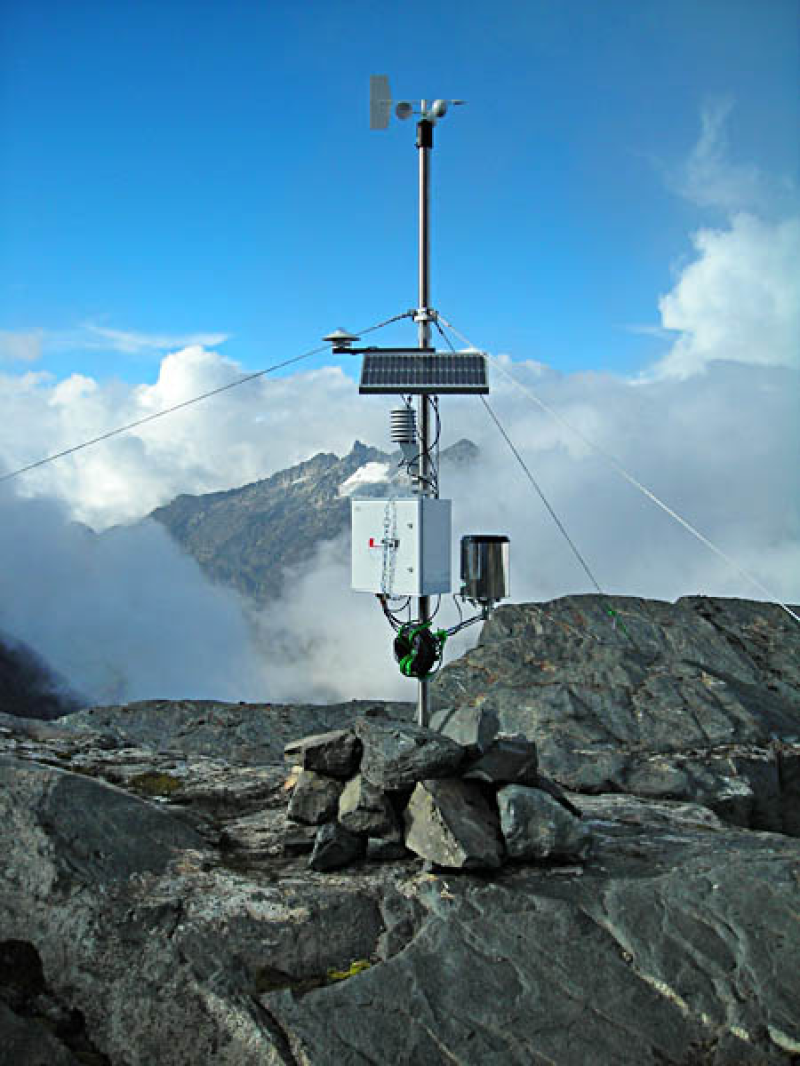

The automatic weather stations (AWS) for monitor meteorological conditions are currently included in the SHARE network.

An automatic weather station (AWS) is defined as a “meteorological station at which observations are made and transmitted automatically” (WMO, 1992a).

In particular, in the framework of the SHARE project for all parameters, the data has been visually checked, looking for extremely and unusual low/high values and/or periods with constant values.
